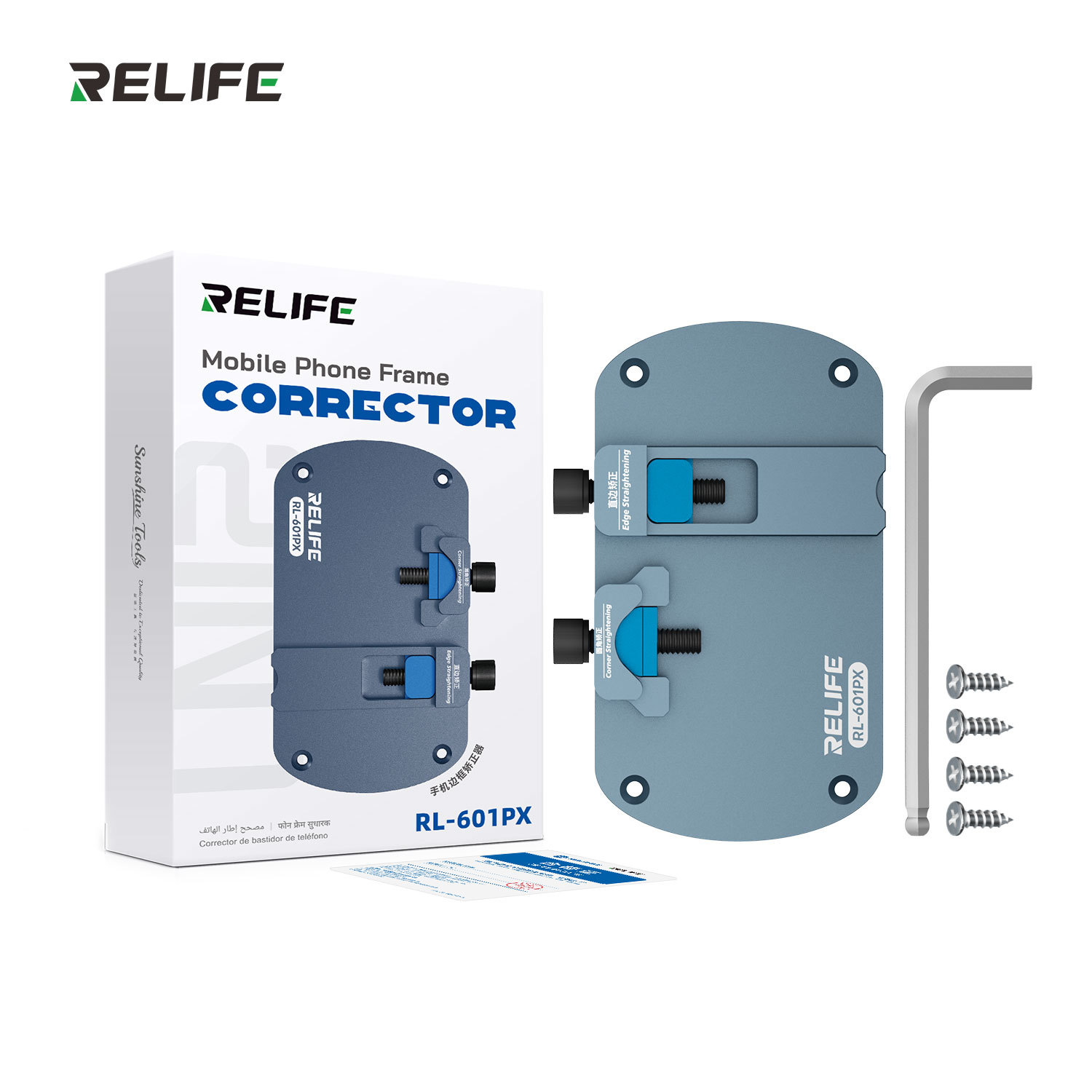

RELIFE RL-601PX iPhone Frame Corrector Dual Station Edge Corner Straightening Tool 7075 Aluminum Repair Fixture

Name: RELIFE RL-601PX iPhone Frame Corrector Dual Station Edge Corner Straightening Tool 7075 Aluminum Repair Fixture
Brand: Novecel Tecnology
SKU: RL-601PX
Price: 16.99 USD
Availability: InStock

SKU: RL-601PX

0.0 (0)

0 Sold

$16.99 ~~$19.99~~

RELIFE RL-601PX

Dual-Station Frame Corrector

1

Flip-Free Station Switching — Flat-edge and round-corner correction stations are co-located on the same base. Switching correction type requires no disassembly or flipping of the clamp, cutting one full mount/dismount cycle versus single-station correctors.
2

Model Coverage — Fits iPhone frames with flat-edge and round-corner structures. Specific generation list pending (see compatibility table below)
3

Build & Included Parts — 7075 aerospace-grade aluminum clamp blocks; housing 175×110×100mm; 4-corner mounting holes for bench fixing; ships with hex wrench and mounting screws.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

RELIFE RL-601PX

Dual-Station Frame Corrector

Workflow Simplification: Flip-Free Dual Station

Flat-edge and round-corner correction stations are integrated into the same base, on the same side. Switching correction type only requires moving the phone between the two fixed stations — no unmounting the clamp, no flipping the unit. Compared with single-station correctors that require a full "correct, remove, remount second clamp" cycle, this removes one complete disassembly step.

Product Specifications

Model	RL-601PX
Clamp Block Material	7075 aerospace-grade aluminum
Stations	2 (flat-edge correction + round-corner correction, same-side layout)
Housing Dimensions	175mm × 110mm × 100mm (± tolerance from manual measurement, refer to actual product)
Flat-Edge Station Clamp Width	30mm
Mounting	4-corner pre-drilled holes, bench-mountable
Included Accessories	1× hex wrench, mounting screw set

Compatibility Matrix

Pending: Source materials (product photos, original bilingual copy) only state "universal fit for IP frames," with no specific generation list and no breakdown of which models use the flat-edge station versus the round-corner station. To avoid fabricating compatibility data that could drive returns or disputes, this section is left unfilled.

Please supply a verified model list (ideally split into "flat-edge station models" and "round-corner station models") and I will generate the fluid compatibility table to replace this block.

Professional Use Only

Correction is applied by manually turning a screw clamp, with no torque-limiting mechanism. Clamping force is judged entirely by operator experience — over-tightening can cause secondary frame deformation or crack surface coating.
The flat-edge and round-corner stations have different physical geometries. Do not force a chassis into the mismatched station — station mismatch causes uneven force distribution and creates new deformation rather than correcting it.
This tool targets professional repair technicians and is not a plug-and-play consumer product. First-time users should practice on a scrap unit to calibrate clamping feel before working on a customer's device.
