RELIFE RL-014G Pro CPU Jump Wire Repair Lamp Magnetic Telescoping Slide Base

Name: RELIFE RL-014G Pro CPU Jump Wire Repair Lamp Magnetic Telescoping Slide Base
Brand: Novecel Tecnology
SKU: RL‑014GPR
Price: 12.99 USD
Availability: InStock

SKU: RL‑014GPR

0.0 (0)

0 Sold

$12.99 ~~$15.99~~

RELIFE RL-014G Pro — CPU Jump Wire Lamp Set

1 300lm high-CRI COB spot light eliminates chip-level shadow zones — reduces rework caused by misjudged solder pad location under standard bench lighting.
2 65–107mm telescoping slide base, magnetic end mount — extends light reach over the work area without needing a separate fixture arm.
3 Type-C PD input + 1/4" tripod thread — drops onto existing bench tooling, no proprietary mount or dedicated power brick required.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

RELIFE RL-014G Pro

CPU Jump Wire Lamp + Magnetic Fixture Set

300lm

COB output

5–9cm

clamp range

Type-C PD

power input

1/4"

tripod thread

What's actually in the box

The RL-014G Pro is a lamp head on a telescoping magnetic slide base — it is not a PCB clamp or board fixture. The 300lm COB bar mounts on a 65–107mm extending arm with a magnetic end point, letting you position the light independently over a shadowed chip area without a separate fixture doing the mounting for you. Any board-holding fixture (magnetic clamp platform, etc.) is a separate tool, not included in this set.

Physical spec reference

Parameter	Value	Notes
Telescoping slide base	65–107mm	Extends lamp reach; magnetic end mount, not a board clamp
Light output	300lm COB	No flicker; CRI stated as accurate, no Ra value published
Power interface	USB Type-C, PD	Rated 3W / 5V
Mount standard	1/4" screw	Standard tripod/desk-lamp thread
Base positioning	Magnetic, multi-angle	Free height/angle adjustment on ferrous bench surfaces

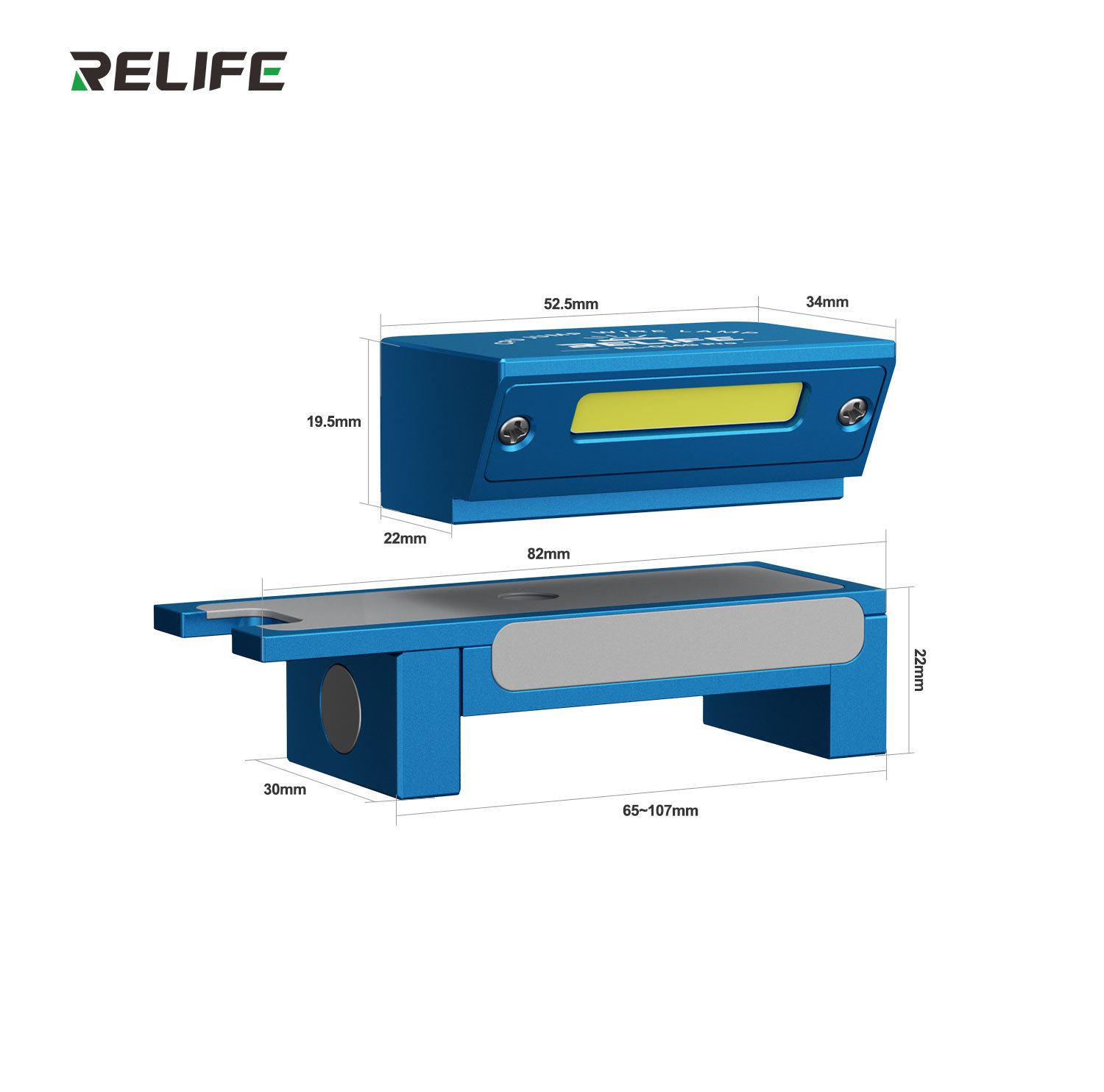

Assembled dimensions	82 × 34 × 42mm	Lamp head + slide base, confirmed against dimensioned drawing
Net / gross weight	≈180g / ≈206g	Full set as boxed
Package dimensions	132 × 93 × 23mm	Retail box, lamp + slide base only

⚠ Professional Use Only — Read Before Clamping

This is a lamp with a magnetic telescoping slide base — it does not clamp or hold a PCB in place. Use a separate fixture for board retention during rework.
The slide extends 65–107mm; extending beyond the rated range stresses the slide mechanism and is not covered under normal wear.
The magnetic mount point holds a fixed field. Avoid direct placement against boards under active calibration of Hall-effect sensors or magnetometer ICs, as field interference can skew readings during that specific test step.
This is a lighting tool, not a soldering temperature control device — it does not regulate iron/hot-air temperature during jump wire work.

Full specification

65–107mm telescoping slide base with magnetic end mount — extends lamp reach without a separate fixture
Built-in 1/4" expansion screw hole — converts to a standalone maintenance desk lamp
Magnetic mount — free multi-angle placement, adjustable height and illumination angle on ferrous surfaces
Type-C PD power input, rated 3W / 5V
300lm COB white light, accurate color rendering, no flicker
Compact body profile (82×34×42mm assembled) — reduces hand obstruction and microscope-view blocking during multi-scene rework
